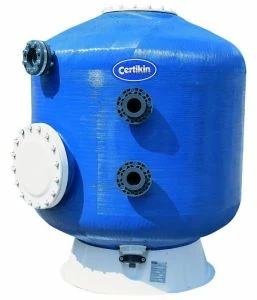

SLXLAT | SLX Lateral Bobbin Wound Commercial Filters

• The SLX filter is manufactured from bobbin wound fibreglass and polyester resin; the distribution and collection system from PVC/polypropylene
• Gauges are supplied with all SLX filters
• All prices exclude filter media
• Filtration Rate up to 11m3/m2/hr is available POA
• Media sight glass and sand service hatch are available as optional extras
• 1.0m or 1.2m bed depth available
• Ø50mm laterals or plate and nozzle underdrain system available

Differential pressure gauge and double effect air vent supplied with all SLX filters

Technical Information:
• Working Pressure: 2.5 bar / 4.0 bar (to order)
• Test Pressure: 1.5 x working pressure
• Max Temp: 50°C
• Bolt down lid

For further details complete an enquiry form and our Commercial Department will contact you.
